Home / Product / Aerospace Grade Self-Locking Nut / Single Lug Plate Self-Locking Nut
Single Lug Plate Self-Locking Nut Supplier
Single Lug Plate Self-Locking Nut

Single Lug Plate Self-Locking Nut

This product is a single lug plate self-locking nut designed for high-reliability fastening in demanding applications such as aerospace and automotive structures. It integrates a lug mounting feature with a self-locking thread to support secure installation and long-term performance.

Key Features

Cold Heading Forming: Manufactured using a cold heading process to ensure high strength and enhanced fatigue life, suitable for critical structural applications.

Lug Flange Design: The integrated lug allows for pre-positioning and fixation, effectively addressing installation scenarios where rear-side access is not available.

Self-Locking Thread: Designed to meet anti-loosening requirements under vibration conditions, improving connection reliability.

Corrosion-Resistant Surface Treatment: Surface protection enhances durability and extends service life in outdoor and humid environments.

  • Single Lug Plate Self-Locking Nut
  • Single Lug Plate Self-Locking Nut
  • Single Lug Plate Self-Locking Nut
Contact Us
PREV：Double Lug Plate Mounting Nut
NEXT：High-Strength Alloy Steel Structural Nut

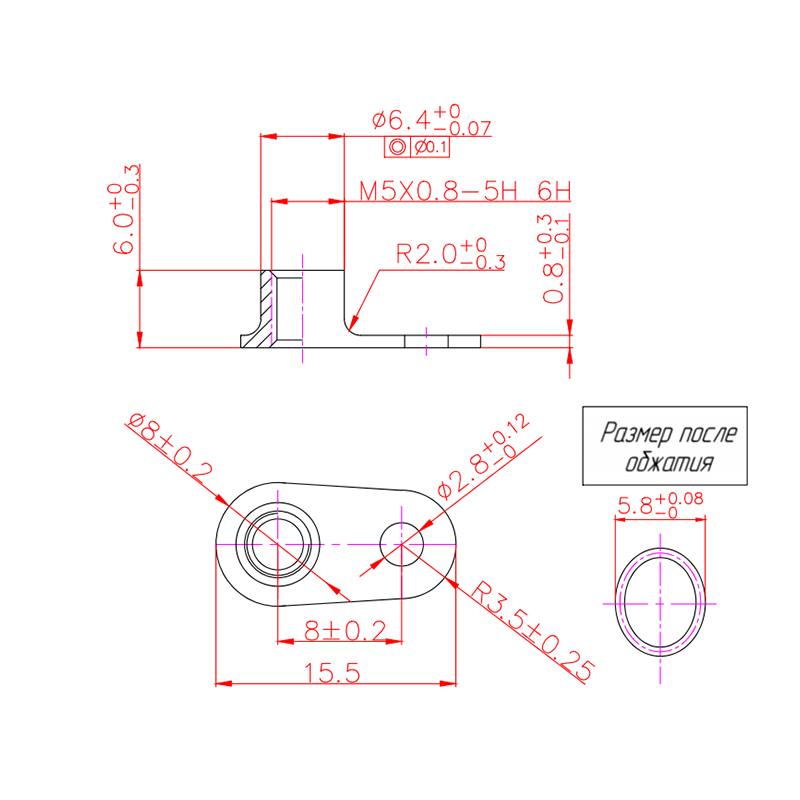

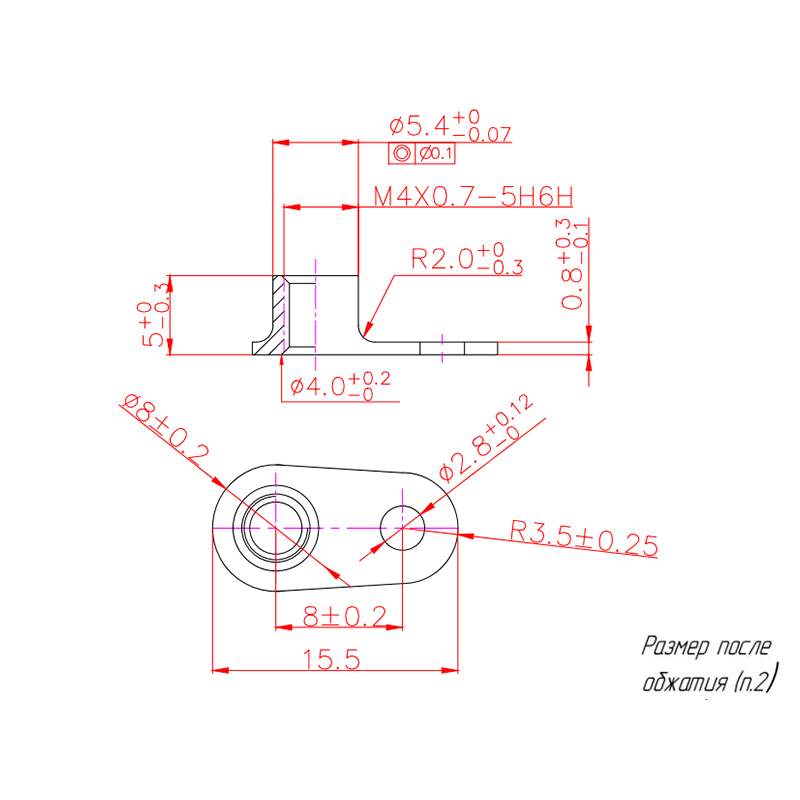

Product Description

Material

Specification

30CrMnSiA

M4

30CrMnSiA

M5
About
Kunshan Hong Yong Sheng Precision Hardware Products Co.,Ltd.
Kunshan Hong Yongsheng Precision Hardware Products Co., Ltd. was established in September 2006, is a professional China Single Lug Plate Self-Locking Nut manufacturer and Single Lug Plate Self-Locking Nut supplier, the production of various types of precision parts, PEM series of standard fasteners, non-standard parts of the custom enterprise, the company's production equipment imported from Japan CNC computer numerically-controlled lathes, Taiwan CAM walking knife type high-precision automatic lathes, and various types of auxiliary equipment, precision testing equipment, totaling more than 100 units, monthly output of up to 5 million pieces. Our products are used in many fields such as electronic communications, computer monitors and chassis, automotive parts, 3C household appliances, medical equipment, pneumatic machinery, sports equipment, furniture, lighting, aerospace, military, photovoltaic, intelligent industry and so on, and we have the technical ability to develop new products.
We also custom Single Lug Plate Self-Locking Nut for our busienss to business customers.
