Home / Product / Aerospace Grade Self-Locking Nut / Double Lug Plate Mounting Nut
Double Lug Plate Mounting Nut Supplier
Double Lug Plate Mounting Nut

Double Lug Plate Mounting Nut

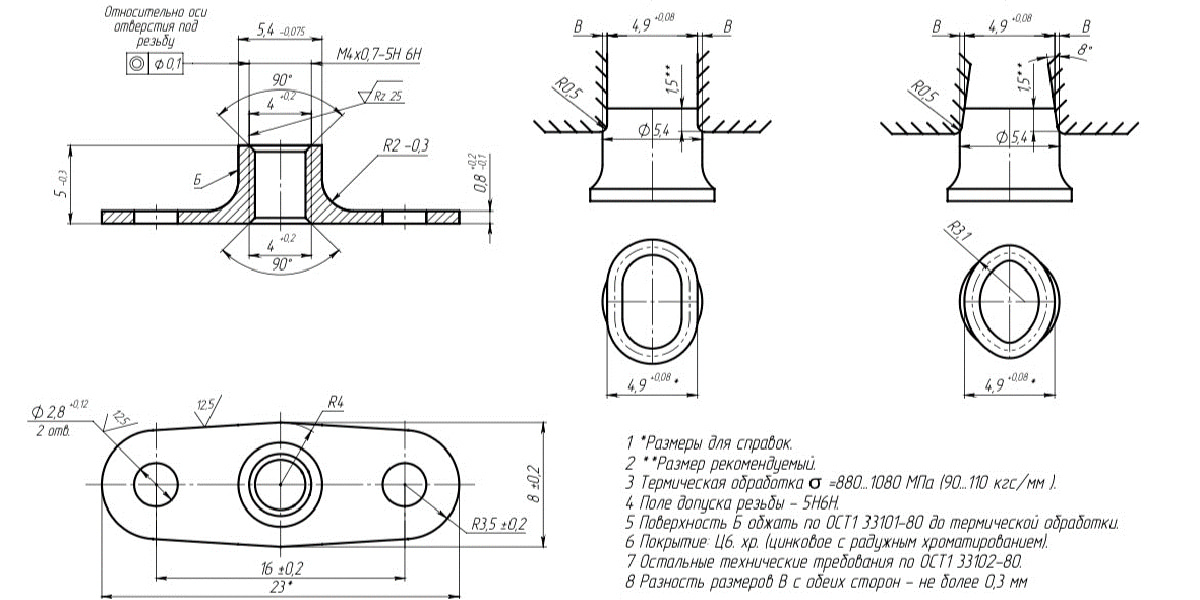

This product is a double lug mounting plate with an integrated self-locking nut (typical model: HB1-804). It is manufactured from carbon steel or alloy steel and features a color zinc plating with passivation treatment. The structure includes dual lug mounting holes and a centrally positioned self-locking nut.

It is mainly used in aerospace and precision equipment applications for lightweight fastening. The mounting plate enables accurate positioning while providing anti-loosening functionality.

Key Features

Efficient Forming: The cold heading process enables near-net shape forming. Compared with conventional machining, it offers higher material utilization and improved production efficiency.

High Precision: Coordinated control of machining and heat treatment ensures thread accuracy and structural stability, meeting aerospace-grade assembly requirements.

Reliable Anti-Loosening Performance: The self-locking design combined with surface treatment maintains stable connections under vibration conditions and prevents loosening.

This product is widely used in aerospace and precision equipment fields, where the mounting plate provides both positioning and anti-loosening functions.

  • Double Lug Plate Mounting Nut
Contact Us
PREV：No previous article
NEXT：Single Lug Plate Self-Locking Nut

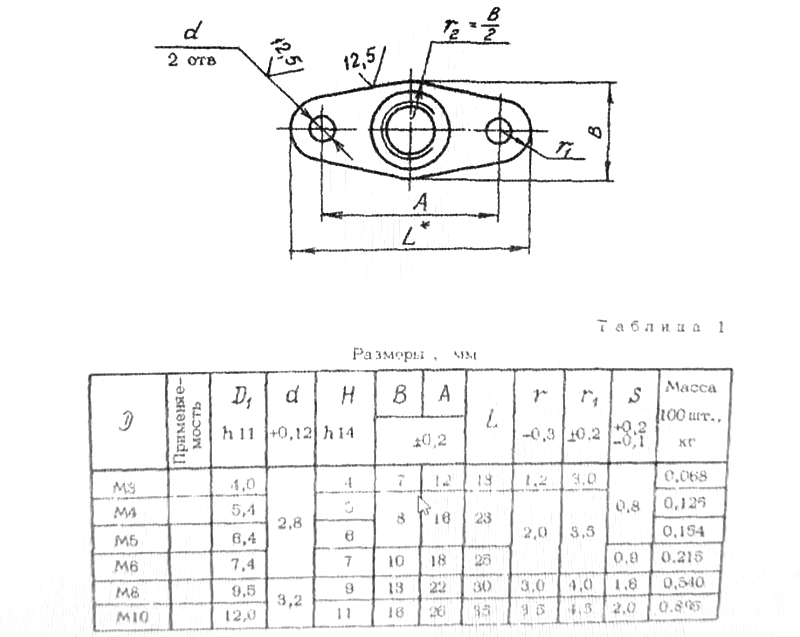

Product Description

Material

Specification

30CrMnSiA

M3

30CrMnSiA

M4

30CrMnSiA

M5

30CrMnSiA

M6

30CrMnSiA

M8

30CrMnSiA

M10
