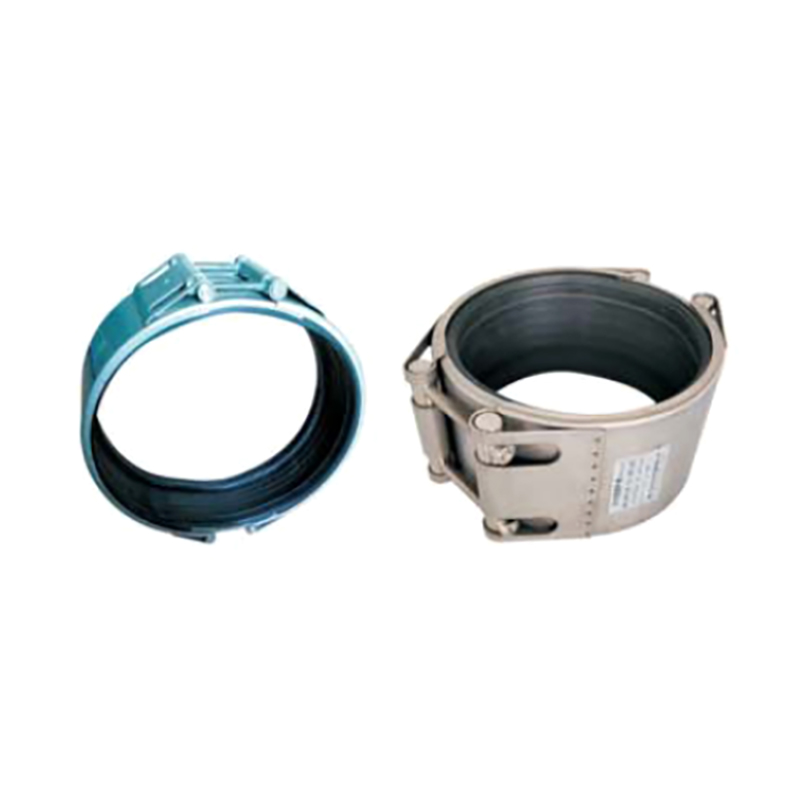

Stainless Steel Full Circle Pipe Repair Clamp

Heavy-duty pipe coupling clamp designed for permanent repair and connection of damaged or leaking pipelines. Manufactured from high-grade stainless steel with integrated rubber gasket to provide superior sealing performance and corrosion resistance.
The full-circle design features a robust bolt-tightening mechanism that delivers uniform radial compression, creating a leak-proof seal around the pipe circumference. The internal rubber liner accommodates slight pipe irregularities while maintaining consistent sealing pressure under varying operational conditions.
Applied in water supply systems, sewage pipelines, chemical transport systems, underground piping, and industrial fluid transfer applications requiring emergency repair or permanent pipe joining. Stainless steel construction ensures long-term durability in corrosive soil conditions and harsh chemical environments.

PREV：Stainless Steel Heavy Duty Pipe Clamp
NEXT：No next article

Product Description

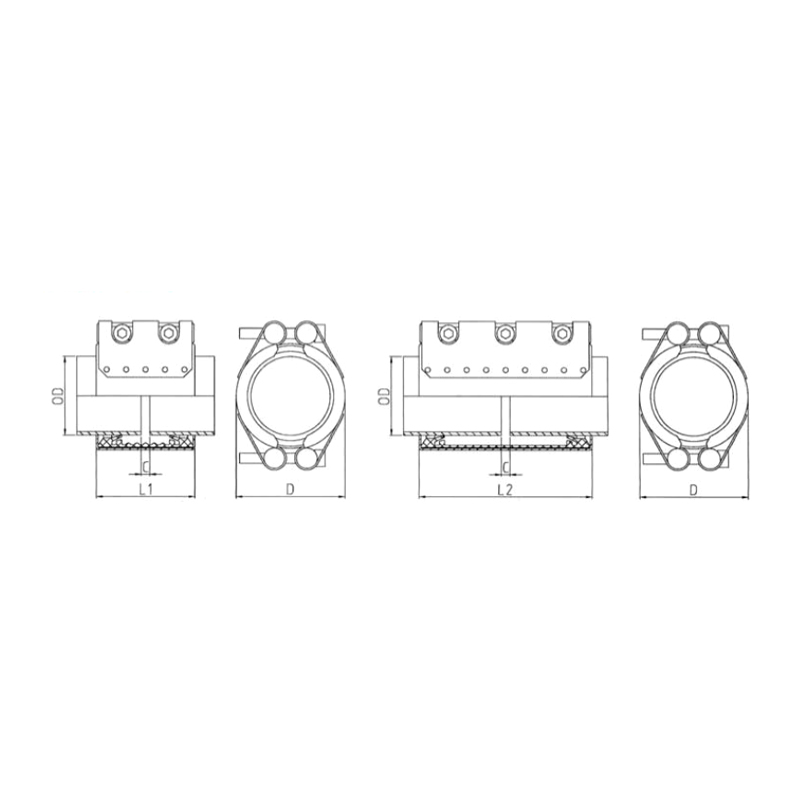

Pipe outer diameter	Scope of application	Work pressure	Pipe connector size		Pipe end distance	Bolt torque	Wrench joint	Thread
ΦD	Min.-Max.	PN	L1	L2	C	Bolt torque	Wrench joint	Thread
(mm)	(mm)	(bar)	(mm)	(mm)	(mm)	(Nm)	(mm)	M value
180	178.3-182	25	143	200	15	100	10	12
200	198.4-202	25	143	200	15	100	10	12
219.1	217-222	25	143	200	15	100	10	12
250	248-253	25	143	200	15	100	10	12
267	264.5-270	25	143	200	15	100	10	12
273	270-276	25	143	200	15	100	10	12
304	301-307	25	143	200	15	100	10	12
323.9	321-327	25	143	200	15	100	10	12
355.6	353-358	25	143	200	15	100	10	12
377	375-380	25	143	200	15	100	10	12
406.4	404-409	25	143	200	15	120	10	12
450	448-453	20	143	200	15	120	12	14
457.2	454-460	20	143	200	15	120	12	14
508	505-511	20	143	200	15	120	12	14
558.8	556-562	20	143	200	15	120	12	14
609.6	606-613	20	143	200	15	120	12	14
711.2	708-715	16	143	200	15	120	12	14
762	758-766	16	143	200	15	150	12	14
812.8	809-817	12	143	200	15	150	12	14
914.4	911-917	12	143	200	15	150	12	14
1016	1012-1020	8	143	200	15	150	12	14
1117.6	1114-1122	8	143	200	15	150	12	14
1219.2	1215-1224	6	143	200	15	150	12	14
1320.8	1316-1325	6	143	200	15	150	12	14
1422.4	1418-1427	4	143	200	15	150	12	14
1524	1519-1529	4	143	200	15	150	12	14
1625.6	1621-1631	4	143	200	15	150	12	14
1727.2	1722-1732	2	143	200	15	150	12	14
1828.8	1824-1834	2	143	200	15	150	12	14
1930.4	1925-1936	2	143	200	15	150	12	14
2032	2027-2037	2	143	200	15	150	12	14
